Force

Standalone Music Production/DJ Performance System

Standalone – no computer required | 8x8 clip launch matrix with RGB LEDs | 7" full color capacitive multitouch display | Mic / instrument / line inputs, 4 outputs | MIDI In / Out / Thru | 4 configurable CV/Gate outputs | Remix, mash-Up, DJ and produce with 6 Track types for complete audio / MIDI / CV sequencing and performance capability | Performance Modes including 16-Pad Drums, Notes, Smart Scales, Chords & Progressions | MPC Sample Editing | Automatic BPM detection, real-time time-stretching and pitch-shifting | 8 touch-sensitive knobs with graphical OLED displays | 4 powerful, fully-editable synth engines | 16GB of on-board storage (over 10 gigs of sound content included) | Full-Size SD card Slot & 2 USB 3.0 slots for thumb drives or MIDI controllers | User-expandable 2.5" SATA drive connector (SSD or HDD)
Multi-Touch Display

The heart of your Force experience. Launch Clips, browse your sounds, edit MIDI data, manipulate samples, apply XYFX, sculpt synth sounds and much more all from Force’s 7-inch full color capacitive multi-touch display.

Matrix

Tactile control for an unrestricted creative flow. Trigger scenes/clips, step sequence, finger drum in MPC 16 Pad Mode and play note data with an expandable 8X8 clip launch matrix with radiant RGB backlighting.

Control

Discover new ways to enhance your performance via 360-degree rotary encoders with OLED feedback – smart assignments and multiple modes provide immediate real-time access to all core controls or link to any assignable parameter for a truly customized experience. Capture and playback any changes with real-time FX automation.

Command

Experience total control of your performance. Navigate your project, control clip/scene playback and access critical mix control (mute/solo/cue) right from the hardware with Force’s ergonomically-positioned controls.

The Ins

Load your samples from either USB Thumb Drives or SD Cards – there’s even a dedicated SATA drive bay for internal storage expansion. Capture audio with (2) XLR / ¼-inch combo inputs with phantom power, switchable to line/instrument level.

The Outs

Route your audio to two stereo ¼-inch outputs, selectable per track within Force’s UI. Use the headphone out as a cue bus to audition clips / scenes. Take control of your modular gear with four independent cv/gate outputs and unite your peripheral MIDI equipment courtesy of MIDI In/Out/Through ports.

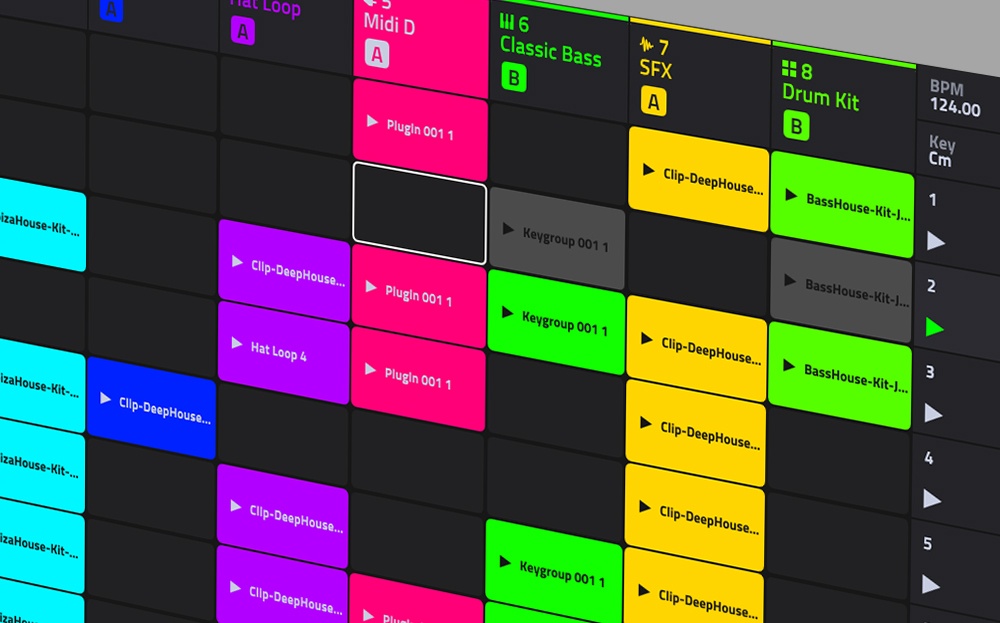

At the heart of Force is an intuitive clip-centric workflow that forms the creative core of your performance. Combine multiple Modes with Plugin Tracks, MPC-Style Drum tracks, Audio tracks, Keygroup tracks, MIDI tracks and CV tracks to define clip types, then sculpt clips via step sequencing, drum pad performances and note data.

Trap Performance and Tutorial

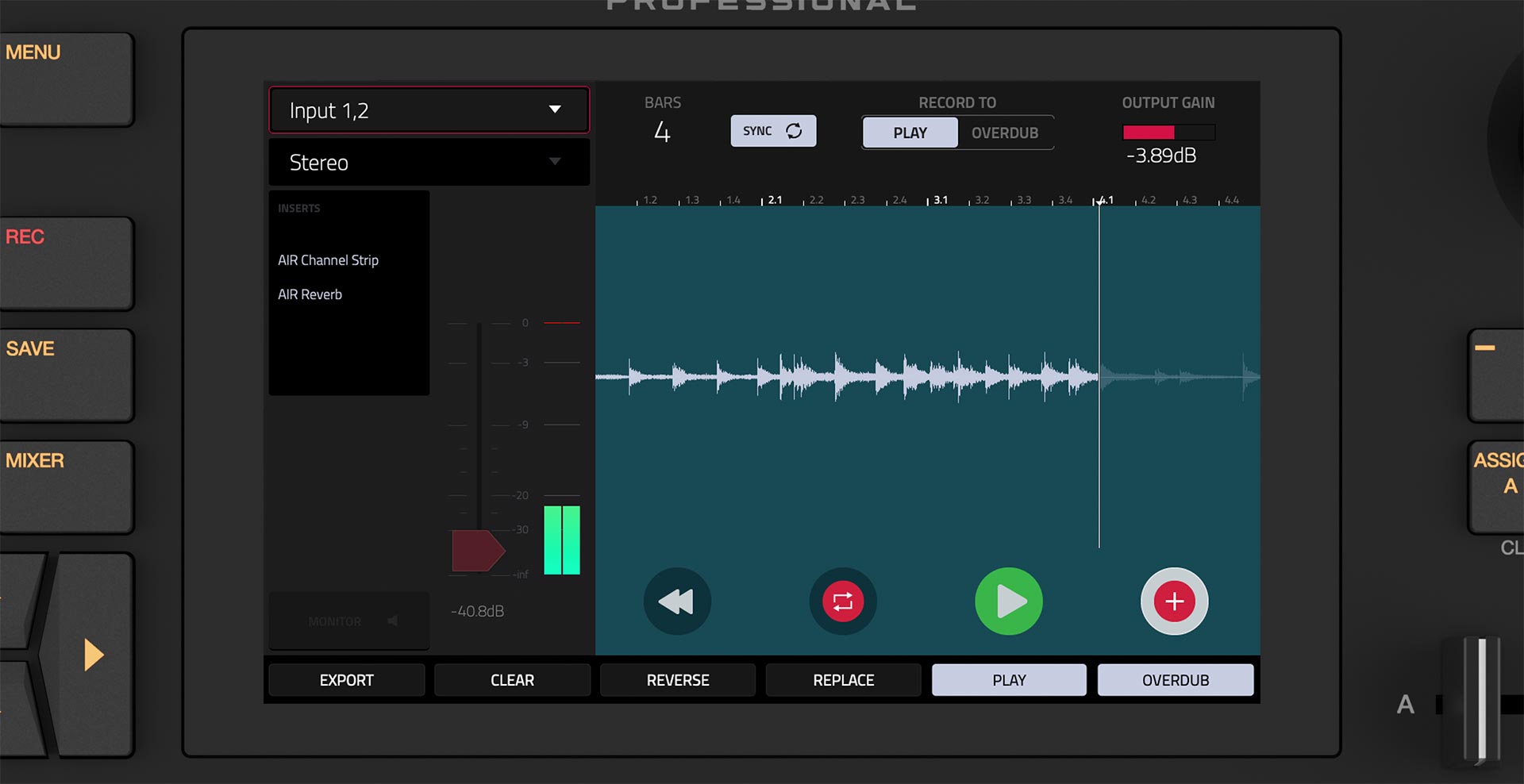

Audio Tracks

Capture Audio from the dedicated combo inputs, load / sequence samples from Force’s browser or resample from another track.

Tutorial - Creating and Recording Tracks

Drum Tracks

Browse the expansive factory kit library or create your own with samples loaded from USB thumb drives or SD cards. With full MPC Sample Editing functionality fused with 16-Pad or Step-Sequencing performance Modes, it’s simple to create your perfect groove.

Plugin Tracks

Hard-coded into the Force Architecture are four premium synth engines, each with full editing capability for immersive sound sculpting potential. Sequence via a traditional piano roll, apply the onboard Arpeggiator or switch up to Note Mode for instant access to intelligent chord, progression and scale options.

Tutorial - Notes Mode

Keygroup Tracks

Load multi-sampled instrument keygroups and playback samples chromatically via a MIDI keyboard or Force’s pads. Using the on-board autosampler, create your own keygroups from your outboard synth gear and sound modules for instant recall within your project.

MIDI Tracks

Send your track’s MIDI data to an external MIDI device including synths and drum machines. Connect your peripheral studio outboard to Force and sample your gear to an Audio Track.

CV Tracks

Get the most out of your modular rig. With CV tracks send your track’s MIDI data to external devices via Force’s 4 CV/Gate outputs.

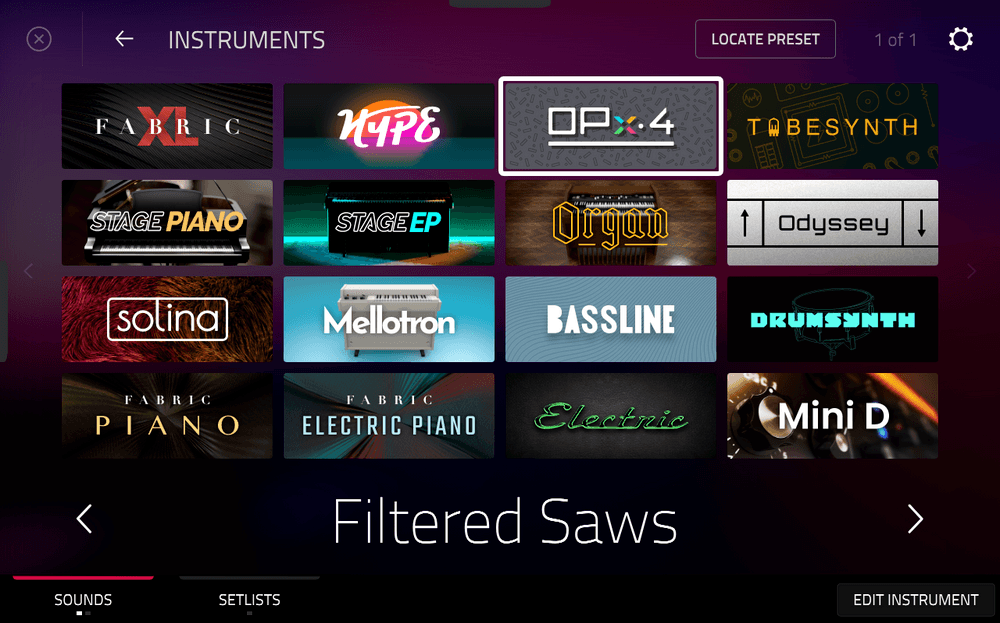

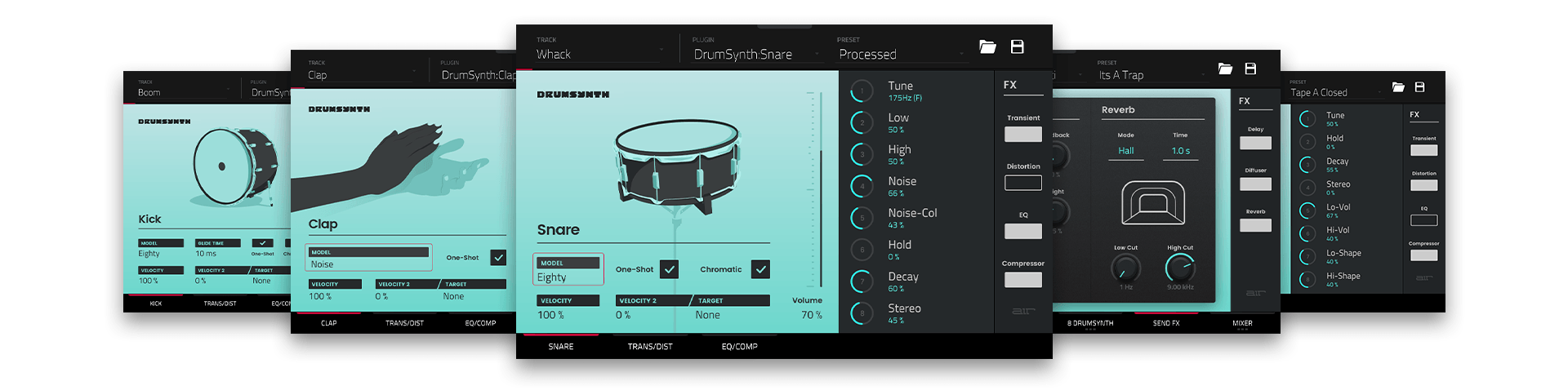

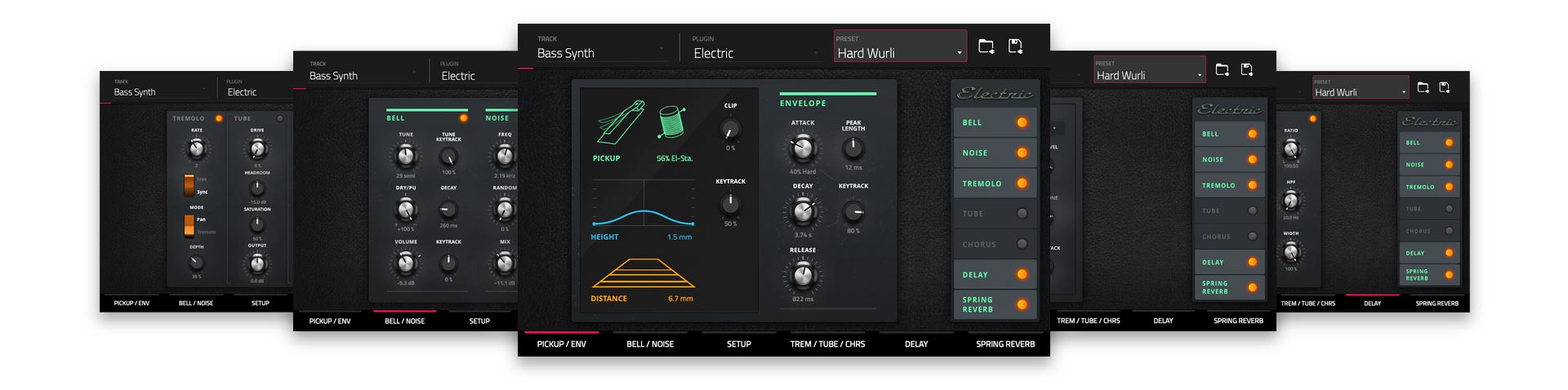

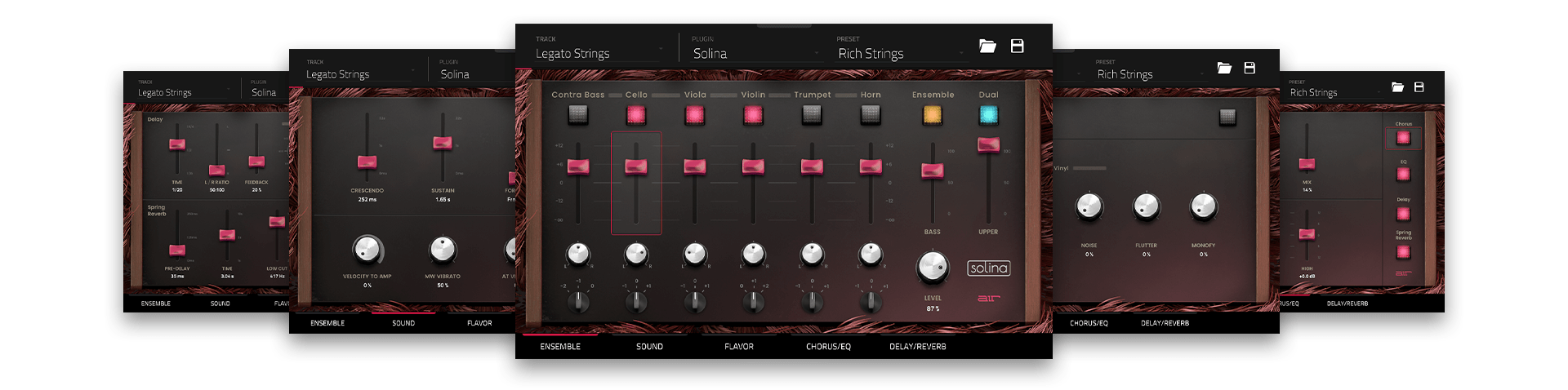

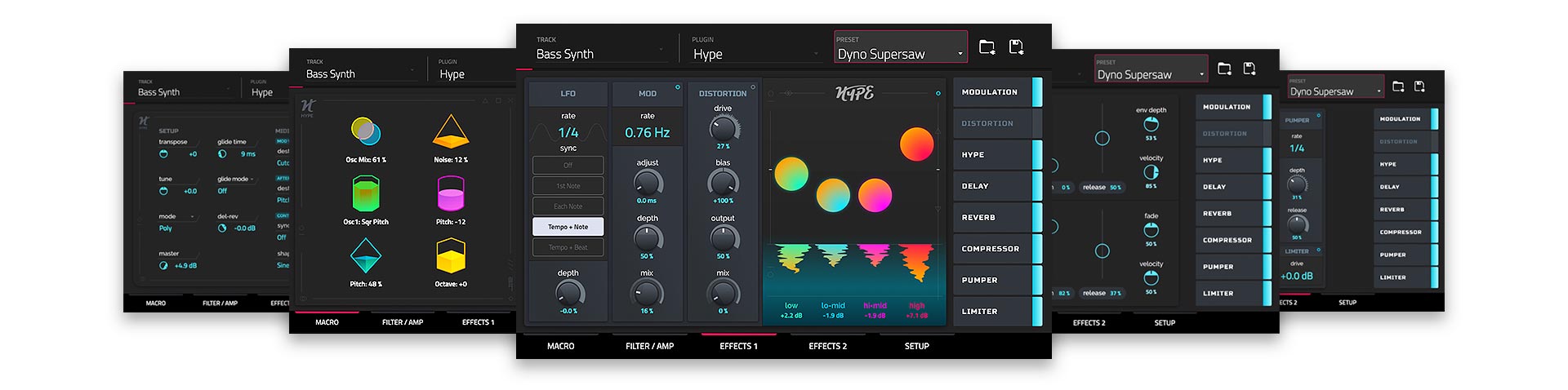

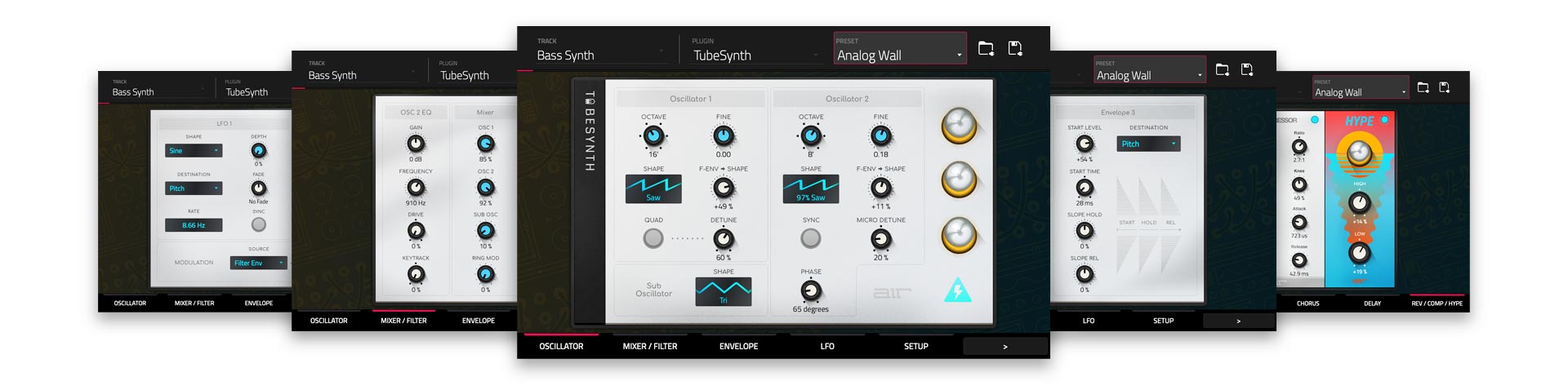

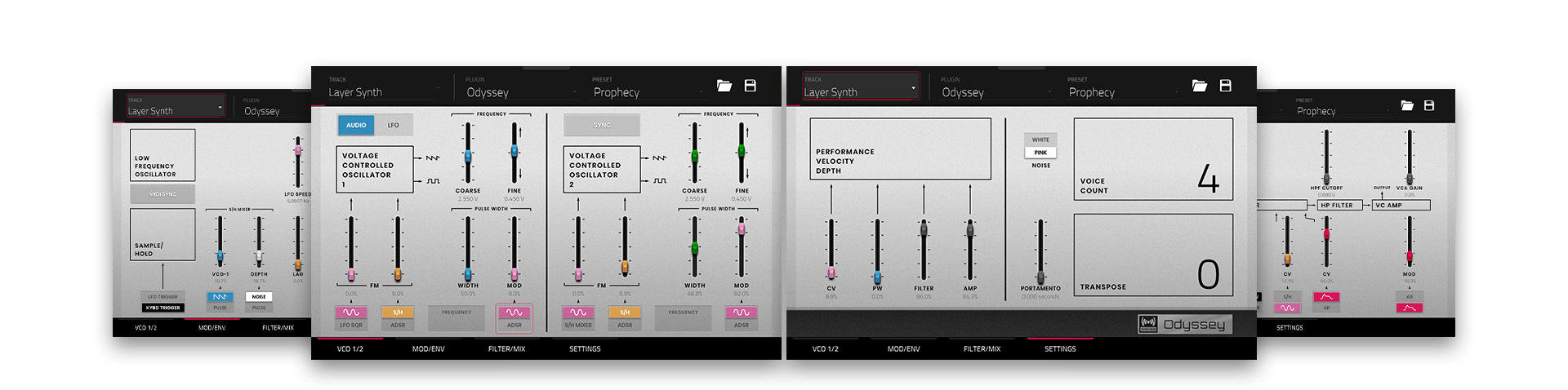

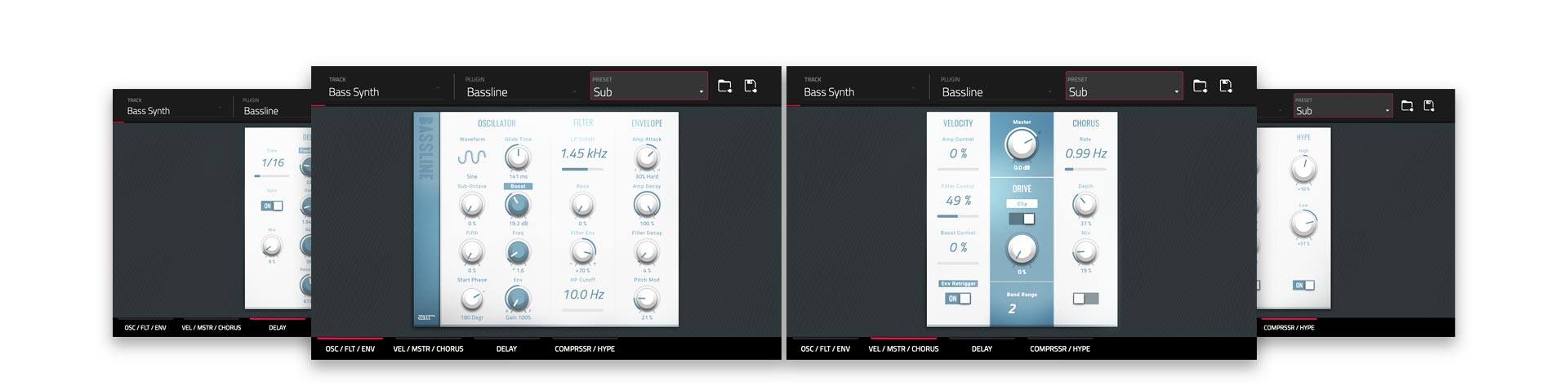

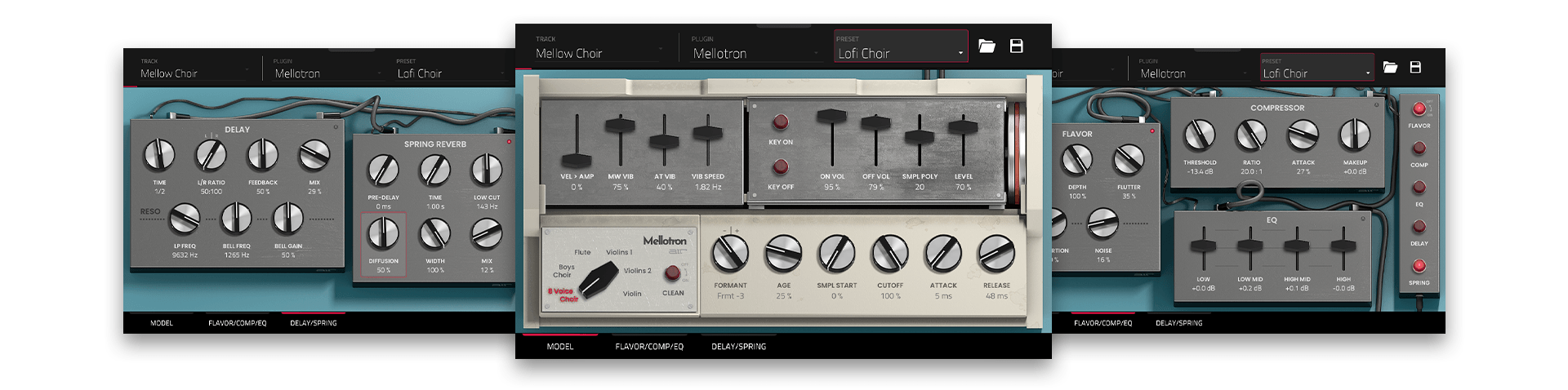

Meet the Synth Engines

Tutorial - Using Plugin Instruments

Sound

Out-the-box, Force comes preloaded with 10GB+ of must-have sounds from industry leading sample content providers including SampleTools by CR2, MSX Audio and Sample Magic. With 248 Kits, 16 Demo Projects, 2500+ Loops and 500+ patterns, Force’s core library provides immediate access to the most sought-after sounds to inspire your creativity from the get-go.

Tutorial - Browsing Samples

Whats New

v3.0.1 update

Coming Soon

Attention all Ableton Live enthusiasts! Shortly after its international release, Force’s development program includes a pivotal update that guarantees one-for-one control of all core production and performance functionality within Ableton Live. From total visibility and command of Ableton’s clip matrix to tactile control of core mixer and device parameters instantiated in Ableton Live’s workspace, Force forms the beating heart of your creativity, guaranteeing immediate, effortless integration within your existing setup.

Force in Session

Specifications

Pads
  • (64) velocity- and pressure-sensitive pads, RGB-backlit
Knobs
  • (8) 360° touch-sensitive Knobs
  • (1) 360° encoder for display navigation and selection via push
  • (5) 270° knobs for gain, mix & level adjustment
Buttons
  • (56) dedicated function buttons; red-, amber-, or green-backlit
Display
  • 6.9” / 176 mm (diagonal)
  • 5.9” x 3.7” / 150 x 93 mm (width x height)
  • Full-color LED-backlit display with touch interface
Connections
  • (2) XLR+1/4” (6.35 mm) TRS inputs (Input 1/2)
  • (4) 1/4” (6.35 mm) TRS outputs (2 stereo pairs)
  • (1) 1/4” (6.35 mm) stereo headphone output
  • (1) 1/8" (3.5 mm) MIDI input
  • (1) 1/8" (3.5 mm) MIDI output
  • (1) 1/8" (3.5 mm) MIDI thru port
  • (4) 1/8” (3.5 mm) CV/Gate outputs
  • (1) Ethernet link port
  • (2) USB Type-A ports
  • (1) USB Type-B port
  • (1) SD card slot
  • (1) power adapter input
Power
  • via power adapter: 19 V, 3.42 A, center-positive, included
Dimensions (width x depth x height)
  • 13.8” x 15.3” x 2.85”
  • 350 x 389 x 72.5 mm
Weight
  • 8.53 lbs.
  • 3.87 kg
